Transfer case cooler

06boblee · Post by **06boblee** » Tue Aug 01, 2017 9:56 am

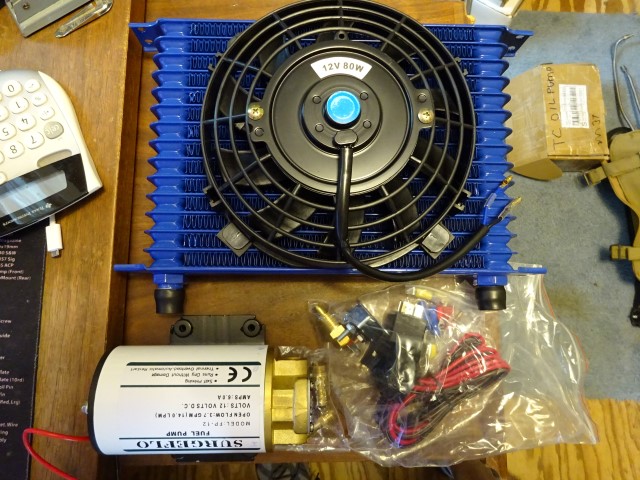

Got most everything to install my TC cooler.

Post by **Cal_Gary** » Tue Aug 01, 2017 11:25 pm

Wow that's quite a setup-please post a photo after the install!
Thanks!
Gary

Jess · Post by **Jess** » Wed Aug 02, 2017 8:15 am

I notice that the fan is 12V. Are you all 12V or will you need a convertor? I ask because these oil coolers are also available in 24V. I think that the M-Series version of this upgrade uses the 24V pump and cooler. WIll be great to see pictures of progress and the final installation.

06boblee · Post by **06boblee** » Wed Aug 02, 2017 8:32 am

Jess wrote:I notice that the fan is 12V. Are you all 12V or will you need a convertor? I ask because these oil coolers are also available in 24V. I think that the M-Series version of this upgrade uses the 24V pump and cooler. WIll be great to see pictures of progress and the final installation.

I have converted to 12V- with a Hemi, that's why I need the cooler!

06boblee · Post by **06boblee** » Sun Sep 10, 2017 12:54 pm

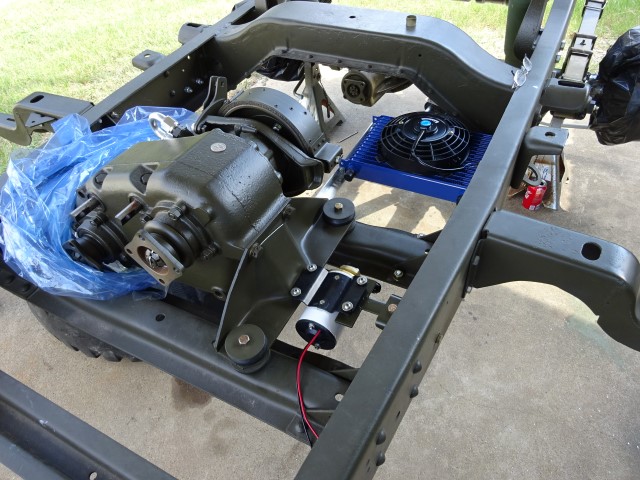

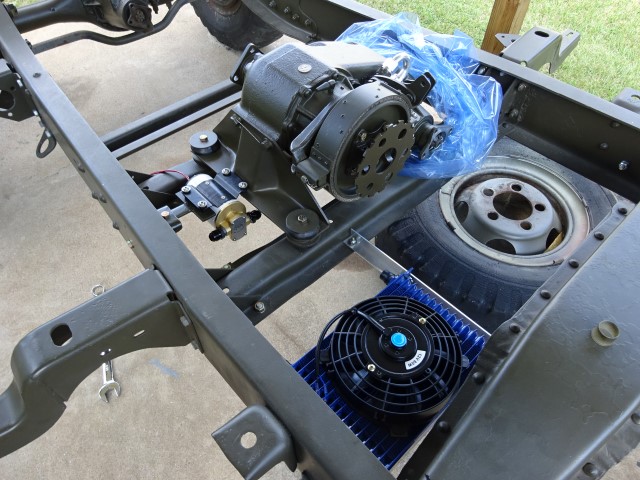

A little farther along...

06boblee · Post by **06boblee** » Tue Sep 12, 2017 1:17 pm

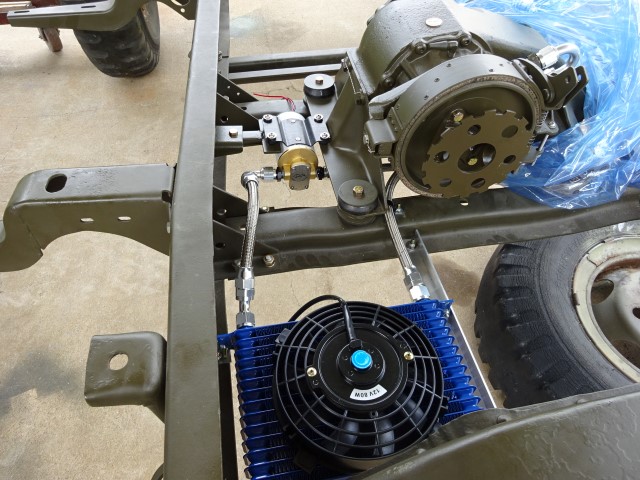

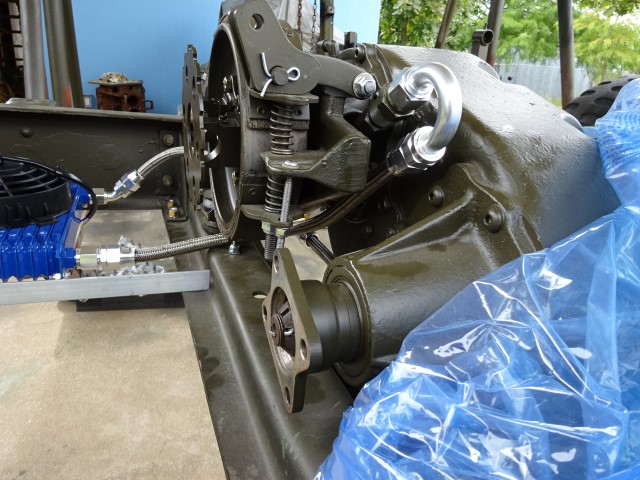

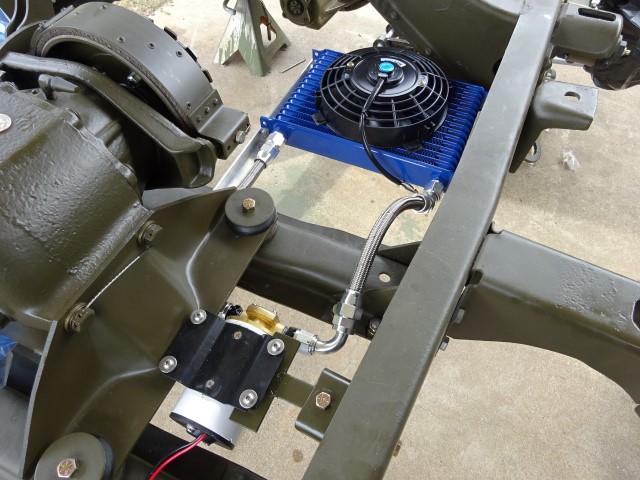

Hoses installed.

Marmalute · Post by **Marmalute** » Tue Sep 12, 2017 2:08 pm

Nice work!
I'm curious, and forgive me if you mentioned this already, but what is the "trigger wheel" looking disc attached to the parking brake output flange?
Doug

06boblee · Post by **06boblee** » Tue Sep 12, 2017 2:33 pm

Marmalute wrote:Nice work!
I'm curious, and forgive me if you mentioned this already, but what is the "trigger wheel" looking disc attached to the parking brake output flange?
Doug

It is the tone ring for the transmission and computer. (5.7 Hemi & NAG-1 5 speed auto)

rickf · Post by **rickf** » Sun Sep 17, 2017 6:15 am

That is a very "clean" installation. Nicely done.

W_A_Watson_II · Post by **W_A_Watson_II** » Sun Sep 17, 2017 6:33 am

Nice, but what's the coating on the Cooler?

m-37Bruce · Post by **m-37Bruce** » Sun Sep 17, 2017 11:15 am

I did not think about the coating, it is out and down there, good question Will.

rickf · Post by **rickf** » Sun Sep 17, 2017 4:01 pm

Yes, the blue coating will reduce the cooling capacity. Flat black is the best color for heat transfer.

Marmalute · Post by **Marmalute** » Sun Sep 17, 2017 4:27 pm

Hey all, actually the color something is has nothing to do with heat transfer ( conduction). Sure, if the source of heat is sunlight it will make a difference, but that should have no effect on this cooler as it is not in direct sunlight!
Cheers!

06boblee · Post by **06boblee** » Sun Sep 17, 2017 5:08 pm

The cooler came this color- a chemically resistant powder coat. It is tucked inside the frame area (in the shade). The fan will provide the airflow for cooling- thought about painting it OD but decided not to because of heat transfer issues with even more paint. The transfer case will be cooler with this setup. The fan and pump are thermostatically controlled.

superbee70 · Post by **superbee70** » Tue Sep 19, 2017 6:42 am

Color definitely has input on heat transfer, especially radiant. How important it is for a cooler is another matter which is probably designed mostly for other forms of heat transfer.
