Rear Shackle Identification

Tim Powell · Post by **Tim Powell** » Sun Oct 30, 2011 12:37 pm

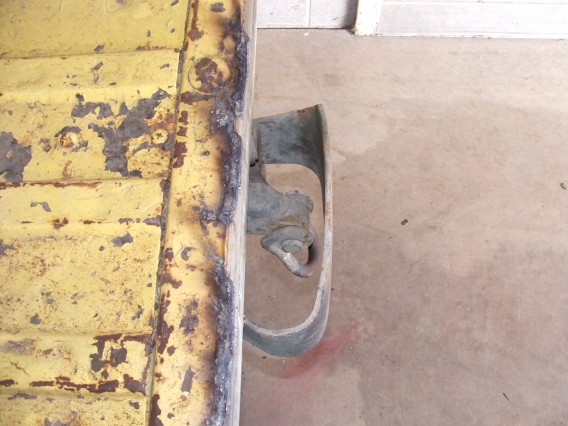

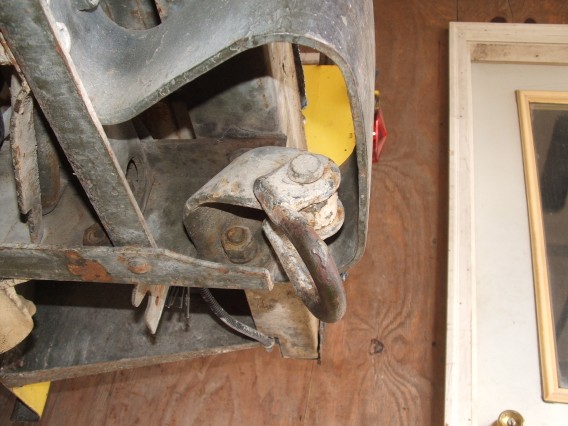

Hey Crew. I removed the broken shackle bracket from the left rear. Here are a couple of shots from the right side. The shackle looks just like the ones on the front. Is that the correct one??

powerwagontim · Post by **powerwagontim** » Sun Oct 30, 2011 2:35 pm

Hi Tim,
They were the same front and rear on my truck. (the shackles themselves, NOT the brackets)
Tim

ZGjethro · Post by **ZGjethro** » Sun Oct 30, 2011 7:11 pm

I have wondered what the front shackles looked like. My truck has no front shackles or brackets. Are the brackets and shackles the same on the front and rear?

cuz · Post by **cuz** » Sun Oct 30, 2011 7:59 pm

As Tim said above:

Hi Tim,
They were the same front and rear on my truck. (the shackles themselves, NOT the brackets)
Tim

Post by **Cal_Gary** » Mon Oct 31, 2011 2:40 am

The rear shackles should hang straight down, like those on the M101 trailer. Check out my painted ones in my tailgate painting post (freshly painted on the green tarp-last picture....)
Gary
http://www.g741.org/PHPBB/viewtopic.php?f=3&t=4218

mike_l · Post by **mike_l** » Thu Nov 03, 2011 4:29 am

The shackles are the same, front and rear. They do not change throughout the truck's production according to the 1955, 1960, & 1973 editions on the parts manual.

Post by **Cal_Gary** » Sat Nov 05, 2011 8:21 pm

Well Mike's post got me digging because I was certain my original response was correct. Guess it depends on your point of view: My 20P manual dated 1955 has the off-set shackle, as well as my Ahl Resto guide. However, my Army Motors #125 shows the prototypes with straight shackles front and rear (and they look goofy on the front, hanging at a 45 degree angle). Anyway, I'll second Mike's response but admit I prefer the straight shackles on the rear.
Gary

Post by **T. Highway** » Mon Nov 07, 2011 5:16 am

Cal_Gary wrote:Well Mike's post got me digging because I was certain my original response was correct. Guess it depends on your point of view: My 20P manual dated 1955 has the off-set shackle, as well as my Ahl Resto guide. However, my Army Motors #125 shows the prototypes with straight shackles front and rear (and they look goofy on the front, hanging at a 45 degree angle). Anyway, I'll second Mike's response but admit I prefer the straight shackles on the rear.
Gary

Gary,

Can you scan the page with the straight shackles from the AM #125 and post it here? I've never seen these before.

Bert

Post by **Cal_Gary** » Sat Nov 12, 2011 3:48 pm

Sorry Bert-no scanner.....

Tim Powell · Post by **Tim Powell** » Sat Nov 12, 2011 5:35 pm

I saw a set of straight shackles on e-bay motors. I'll see if I can find them and I'll post the picture on here Bert.

Tim Powell · Post by **Tim Powell** » Sat Nov 12, 2011 5:44 pm

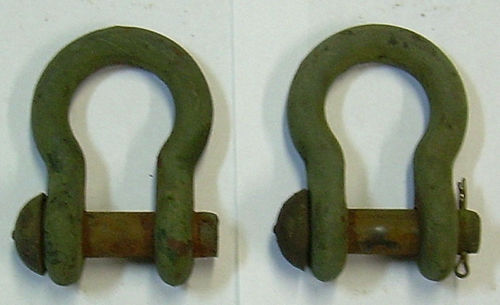

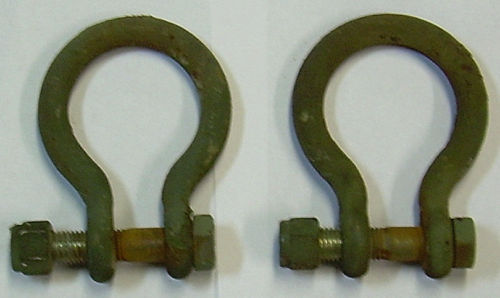

I don't have a clue what these are other than I saw them on e-bay motors listed for an M-37 and a few other models.

cuz · Post by **cuz** » Sat Nov 12, 2011 10:16 pm

The Army Motor's article has three photos of pre-production pilot trucks with two showing the straight front shackles. There are 8 production truck photos of both pre-55 and post-55 trucks with the 90 degree lay flat type.

The 1954 ORD 9 and 1957 ORD 7 lists 4 each shackles ORD PN 7373735 CC # 1268540. The 1972 TM 9-2320-213-20P lists Shackle, FSN 4030-737-3735 (ORD # 7373735) 4 each.They are all the 90 degree lay flat on front type.

The three photos below were from the Army Motors 125 issue.

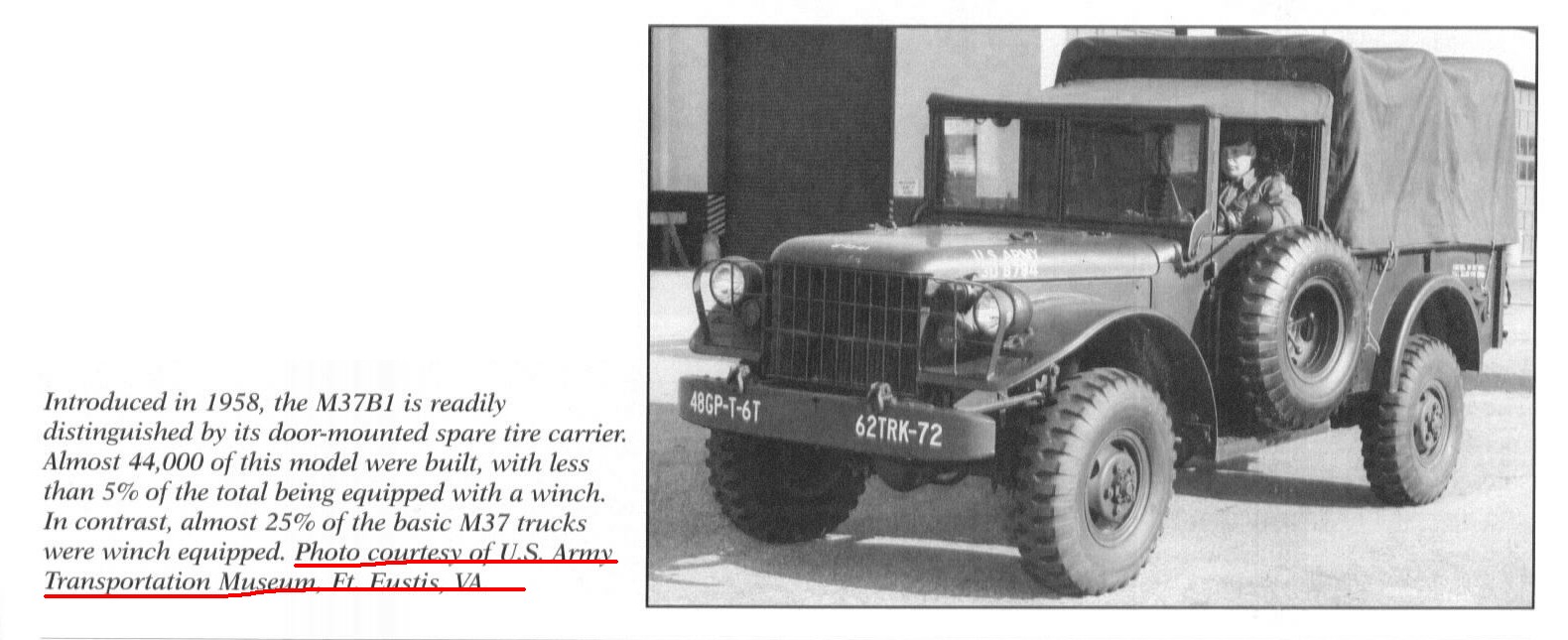

: M37B1 with 7373735 shackles; M37B1.JPG (190.53 KiB) Viewed 1819 times

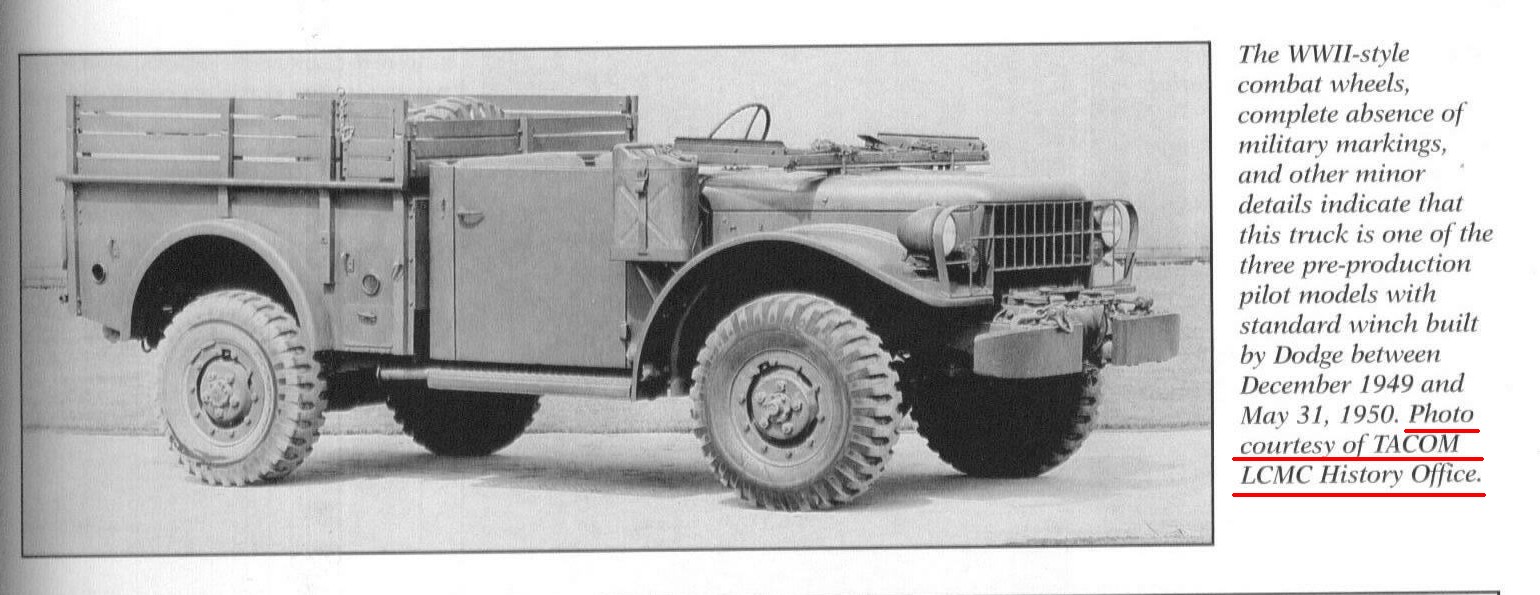

: Pre-production pilot truck flat shackles; 2370205.JPG (208.14 KiB) Viewed 1819 times

: Pre-production pilot truck flat shackles; w-winch.JPG (192.49 KiB) Viewed 1819 times

ordPN 7373735

powerwagontim · Post by **powerwagontim** » Sun Nov 13, 2011 5:02 am

Not trying to hijack the thread, but Cuz's pictures bring up a question. The pre-production truck is equipped with combat wheels. I have heard that some of the early trucks had them, is this fact, and if so, up to what year would have had them?
Thanks,
Tim

cuz · Post by **cuz** » Sun Nov 13, 2011 9:40 am

Only that one pre-production truck had them. If you read the article and look at the other two pre-production trucks the one in the first photo was the only one to get them.

powerwagontim · Post by **powerwagontim** » Sun Nov 13, 2011 2:22 pm

Thanks Wes,
Good info, and from a trusted source!
Tim
