M37 tools

Paddyofurniture · Post by **Paddyofurniture** » Sat Mar 05, 2011 8:31 am

Does anyone have a list with or without photo of the tools issued with a M37?

Thanks,

Paddy

Member of the "Old OD Green Truck Club” (OODGTC)

Joe · Post by **Joe** » Sat Mar 05, 2011 12:27 pm

There's a list of the tools supplied with the trucks in the Specifications section of this website http://www.g741.org/Specifications.html. But be aware that some of the things like first aid kit, fire extinguisher(?) and the type jack were deleted or changed during the production so compare your vehicle number against the changes shown on the Production Changes page of this site to see what is appropriate and what's not. SOMEWHERE on the net I have seen a picture of the original hydraulic jack that was issued for the M-37 but i didn't bookmark it. It's the only picture of that jack that I've ever seen.

cuz · Post by **cuz** » Sat Mar 05, 2011 3:53 pm

OTD 7 SNL G-741 is one of the better list sources.

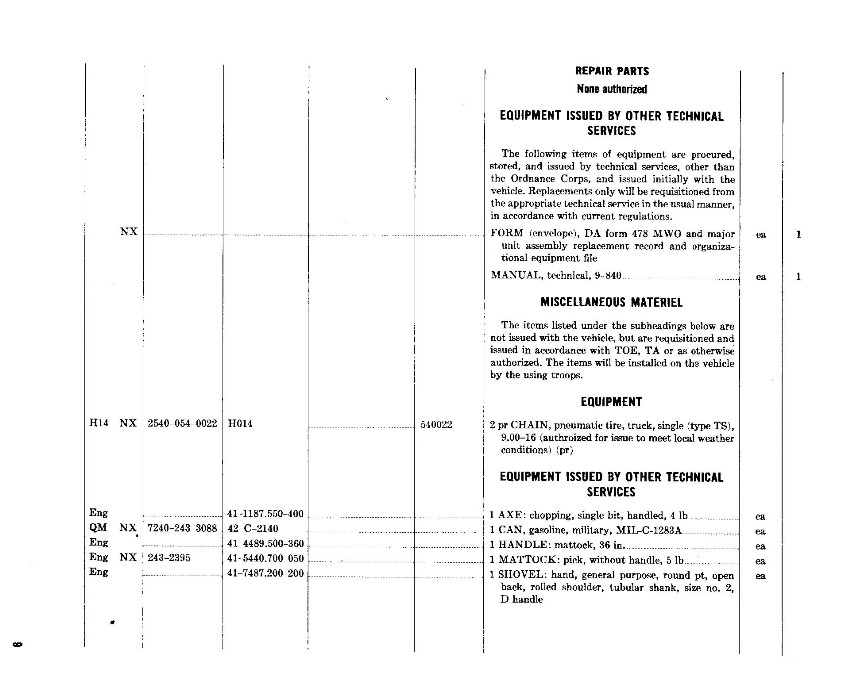

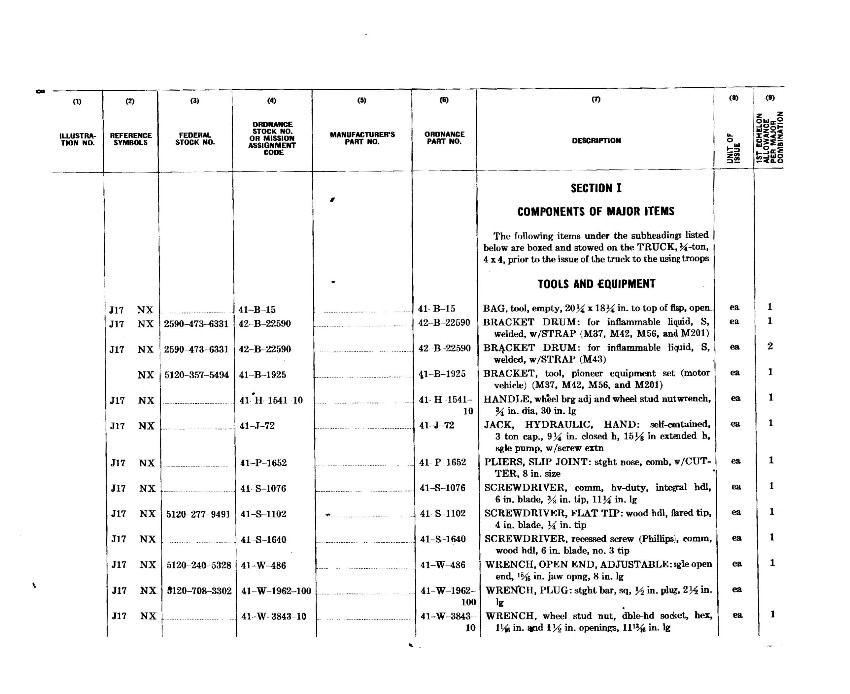

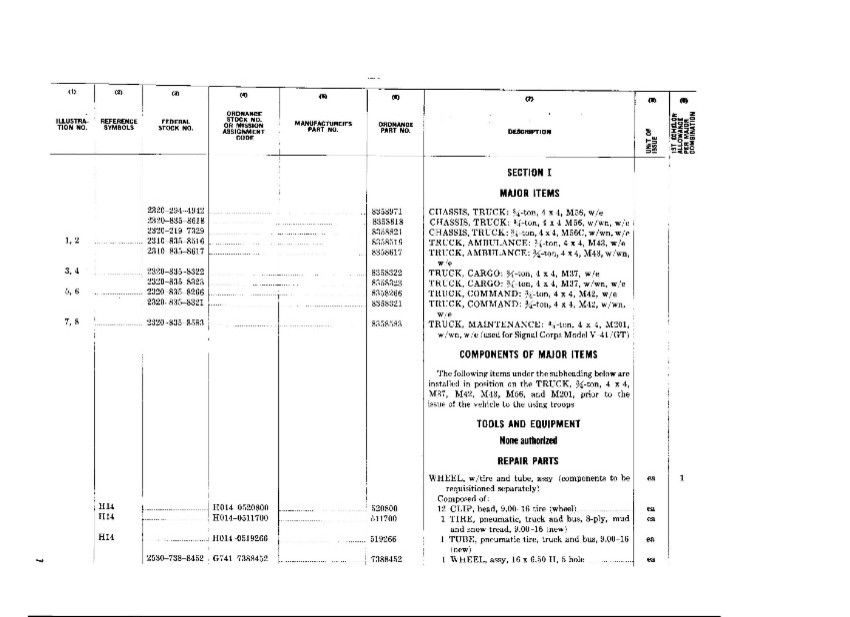

: 7.JPG (82.58 KiB) Viewed 1380 times

: 8.JPG (127.45 KiB) Viewed 1380 times

: 9.JPG (101.77 KiB) Viewed 1380 times

cuz · Post by **cuz** » Sat Mar 05, 2011 3:55 pm

The ORD 7 was dated Jan 57.

This TM 9-2320-212-20P is dated March 1972

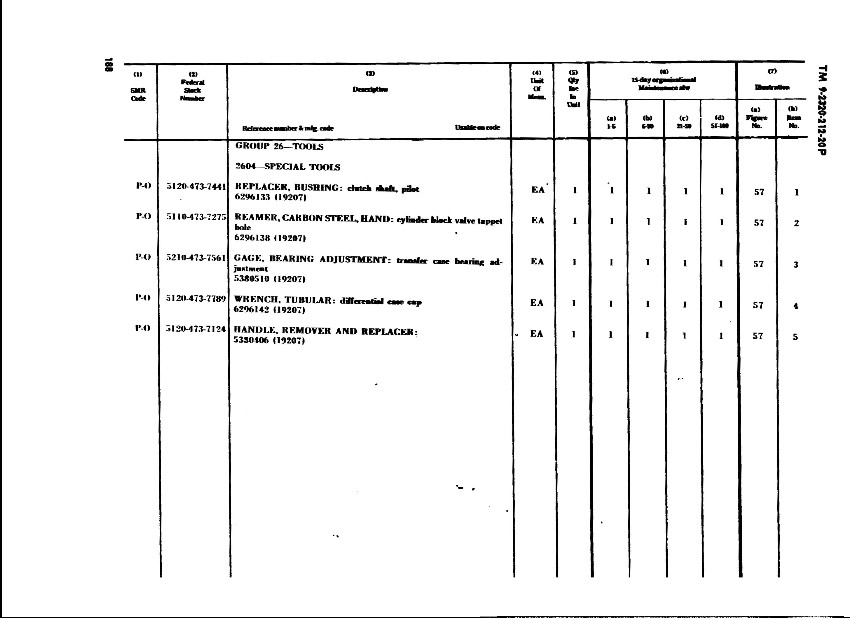

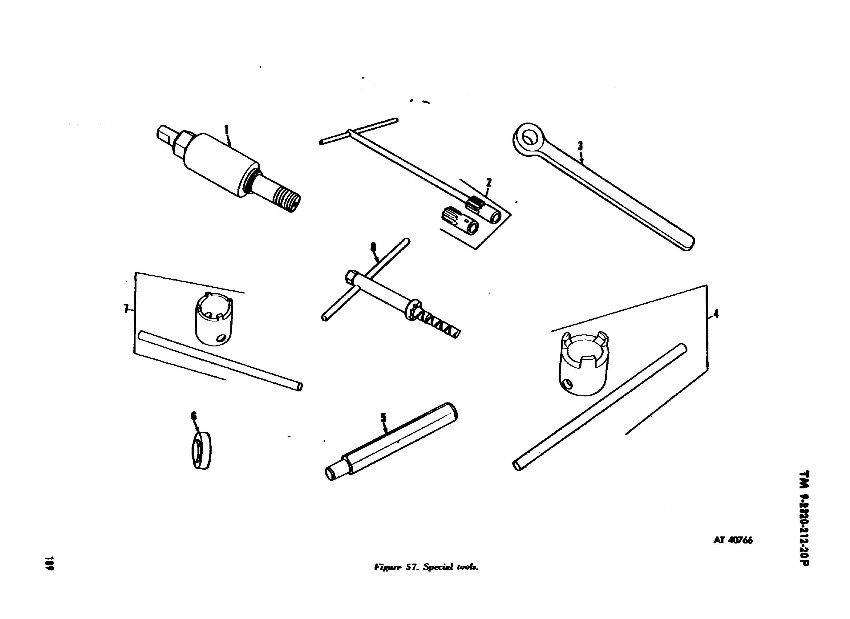

: 188.JPG (76.49 KiB) Viewed 1379 times

: 189.JPG (48.25 KiB) Viewed 1379 times

Paddyofurniture · Post by **Paddyofurniture** » Sun Mar 06, 2011 8:39 am

Thank you all for your help on tools.

It has been a good day. I have learned more about M37.

Now to find a photos of the jack and tools.

Paddy

Member of the "Old OD Green Truck Club” (OODGTC)

cuz · Post by **cuz** » Sun Mar 06, 2011 10:55 am

http://news.webshots.com/album/559353479ogiJtR

Carter · Post by **Carter** » Sun Mar 06, 2011 12:52 pm

Thanks for posting a link to my photos Wes, always good to see them being used to inform other M owners. I would have put them up yesterday but other duties kept me busy.

Here is another view of the jacks that were issued with our trucks, note both are slightly different and although not visible in this shot the model numbers differ also.

Carter

Paddyofurniture · Post by **Paddyofurniture** » Sun Mar 06, 2011 2:01 pm

I remember these jacks when I was in the Army.

When the M37 went away there was a big pile of jacks and tools in the parts area to be turned in.

I should have "obtained" a set.

Paddy

Carter · Post by **Carter** » Mon Mar 07, 2011 4:19 am

When my unit was turning in their M37s I was ask if I wanted one of the jacks but I was only able to get one at that time, the other I bought at a yard sale.

Paddyofurniture · Post by **Paddyofurniture** » Mon Mar 07, 2011 5:33 am

Some people have all the luck.

Paddy
