Behind dash harness routing
Does anyone have a photo of the firewall behind the dash. I'm looking to see how the wiring harness is routed and position of clamps. I failed to take a photo of mine when I took it apart. I've been through the manuals and can only find a reference about the harness being secured in three locations behind the dash. I'm almost ready to install the cab.
Re: Behind dash harness routing
Hi John,
Not sure exactly what you're looking for...I'm in the process of similar work. I've attached 3 photos. Let me know if those do the trick. I'm happy to sent more photos, if you need them.
Not sure exactly what you're looking for...I'm in the process of similar work. I've attached 3 photos. Let me know if those do the trick. I'm happy to sent more photos, if you need them.
- Attachments
-

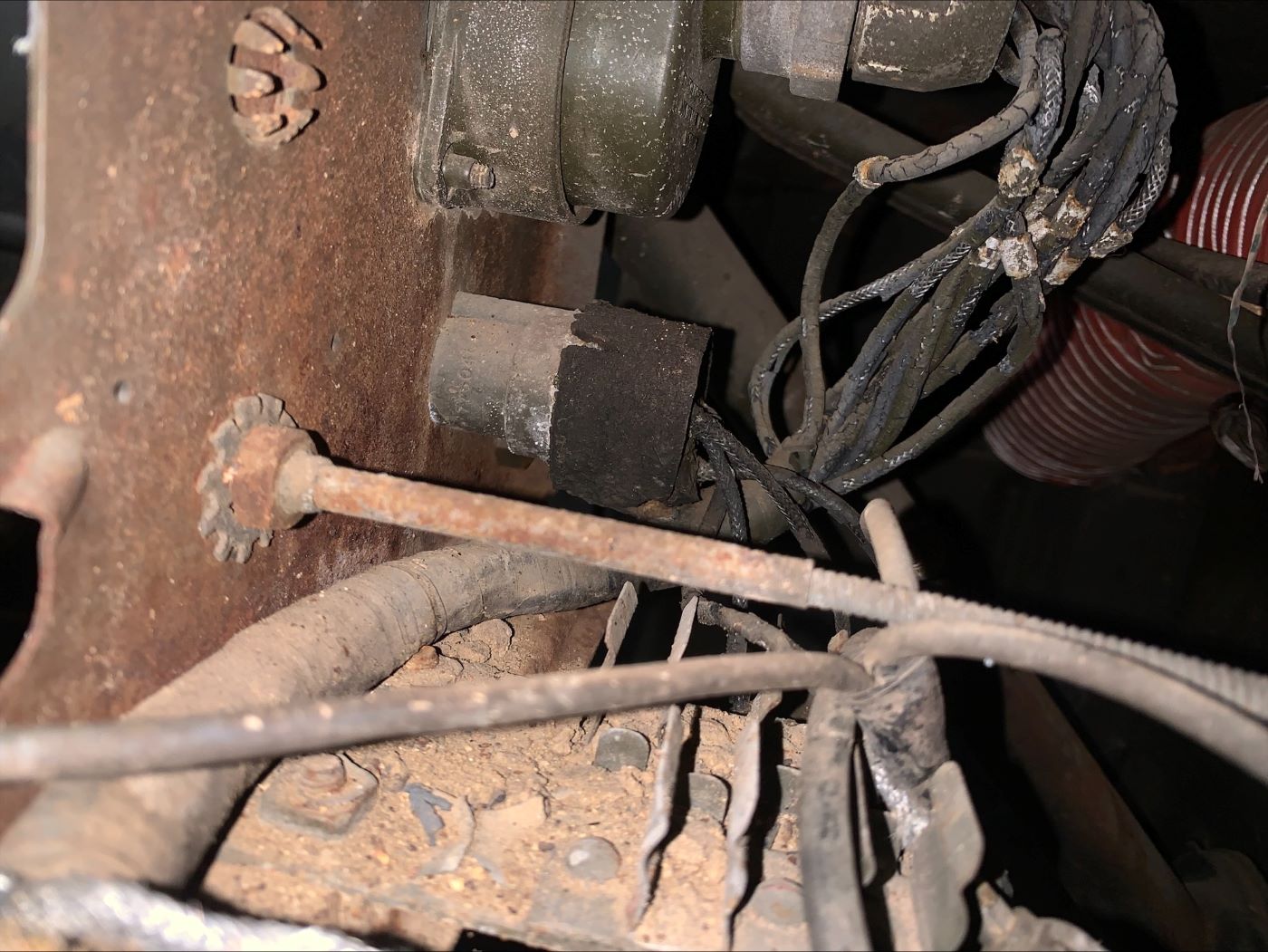

- Dash3 resized.jpg (226.96 KiB) Viewed 2451 times
-

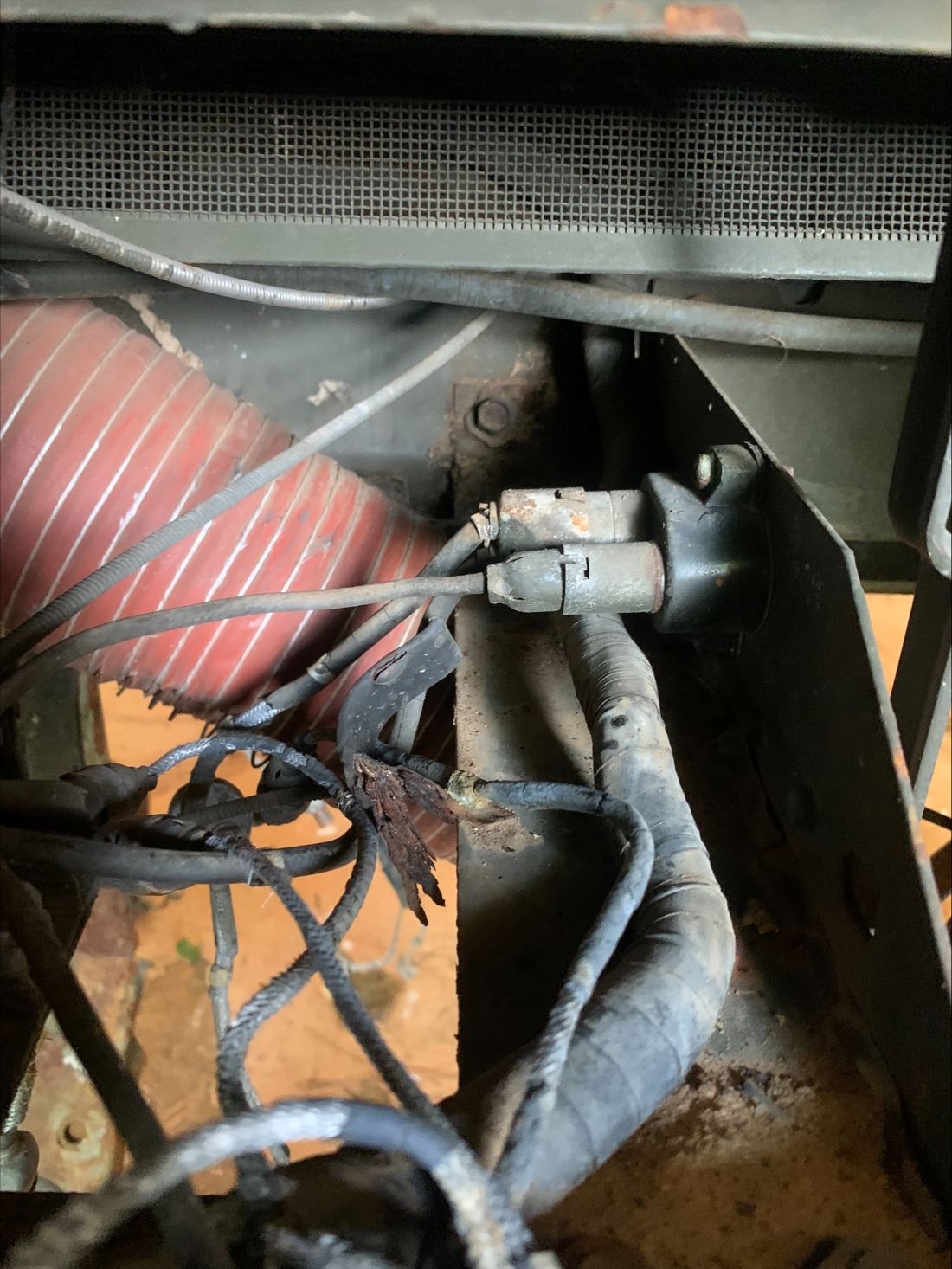

- Dash2 resized.jpg (235.5 KiB) Viewed 2451 times
-

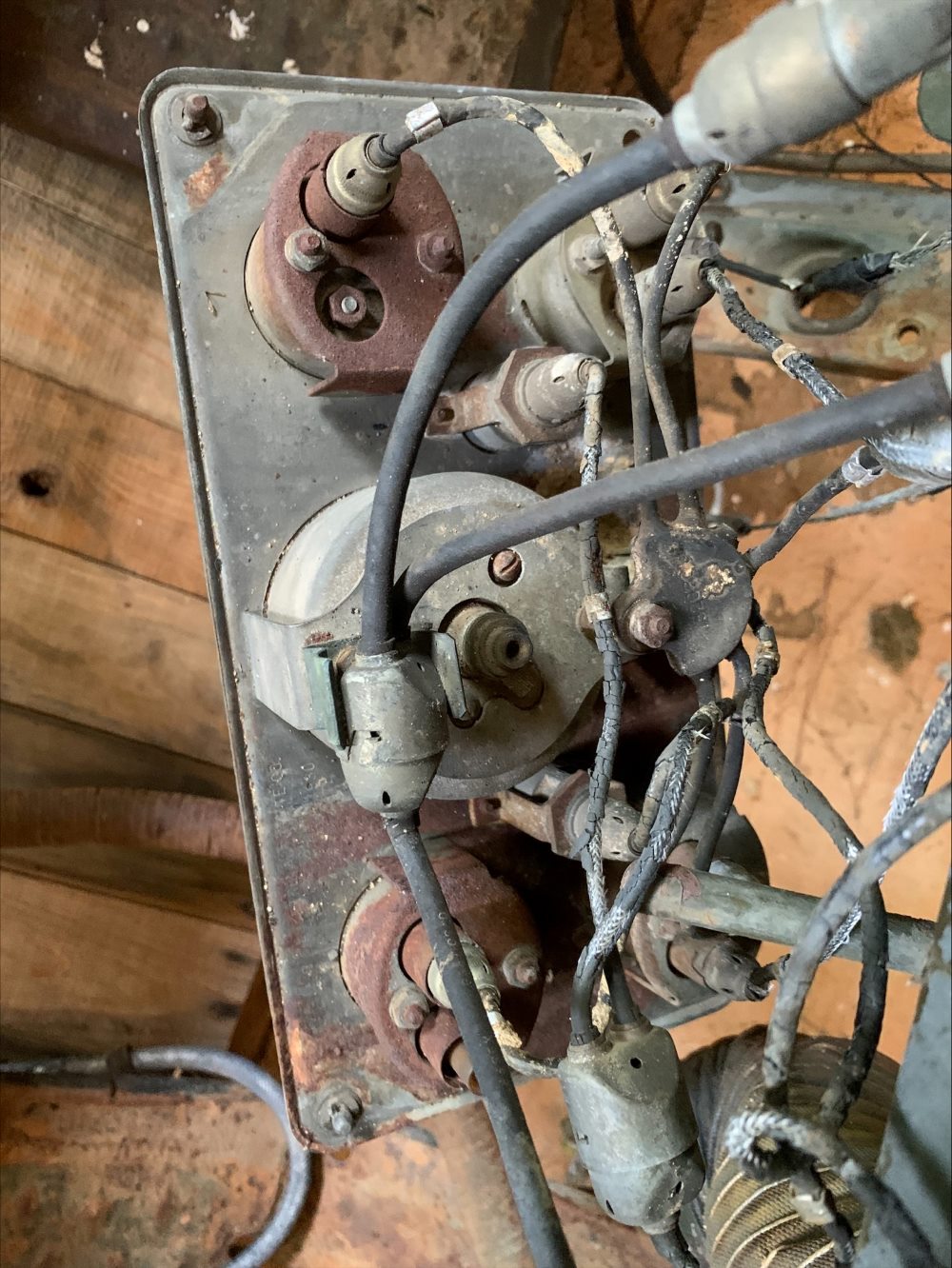

- Dash1 resized.jpg (255.63 KiB) Viewed 2451 times
John Hedges
M37B1-Oct 19,1958, 1952 M37, 1945 WC 63, 1942 GTB
MVPA 17461
M37B1-Oct 19,1958, 1952 M37, 1945 WC 63, 1942 GTB
MVPA 17461
Re: Behind dash harness routing
It is held with those u shaped hooks in 3 locations and mine also has the spring clamps for the 3 wire Douglas connectors holding them.
