m37 100 amp wiring

[nutsfor59]

hi,anyone out there have a wiring schematic for a m37 equipped withh 100 amp system ??

[snowdad]

I need the schematic also. When I get time to restore mine I will rewire it. It is a 100 amp system and was formerly a M42.
Phillip

[cuz]

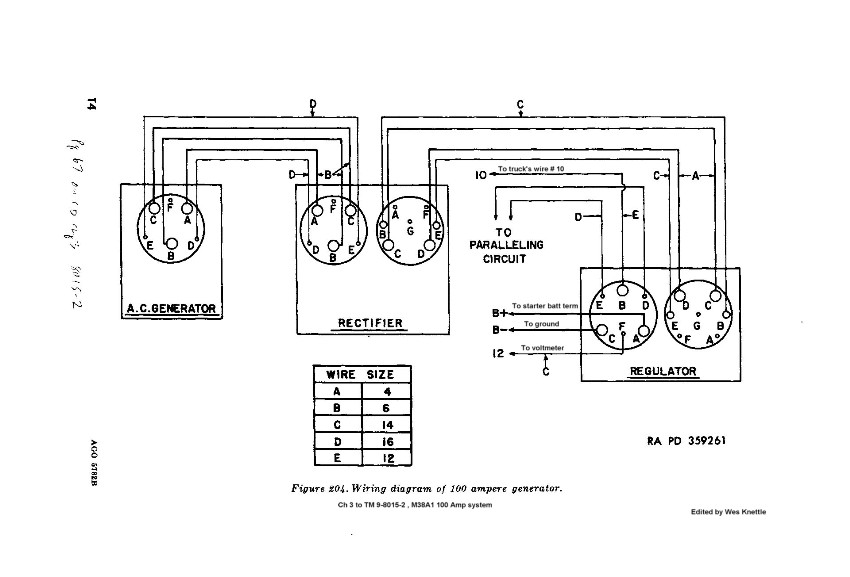

This should work. It's from the M38A1 kit but wiring interface between units is the same and wiring interface with truck's harness is essentially the same. The paralleling circuit wires are only used in multiple generator installations.

100 amp sys.JPG (71.27 KiB) Viewed 647 times

[nutsfor59]

hey !! many thanks for the diagram !!,i actually have that one but mine has no notations as to the destinations of the wires leaving the regulaor,i'll give it a try as soon as i come up with a haness,thanks again !!
